Waterjet Cutting for Custom Shapes & Specialty Projects
A custom opening. An intricate profile. A piece you cannot buy off the shelf. Tennessee Valley Specialties offers waterjet cutting from our Copperhill, Tennessee shop, helping homeowners, builders, designers, and fabricators turn a drawing into a practical next step.
Make Room for the Details Your Project Needs
Some pieces need more than four straight edges. Waterjet cutting follows a programmed path to create curves, shaped openings, holes, and profiles that would be difficult to produce with basic cutting methods.
For hard materials, water carries a fine abrasive through a focused nozzle. The stream removes material along the design without a heat-affected zone. The result is a useful starting point for specialty fabrication, from a glass panel with carefully placed cutouts to a custom part that needs a specific outline.
TVS reviews the whole piece: what it is made from, where it will go, which dimensions matter, and what needs to happen after the cut.
- Curves and custom outlines
- Holes, notches, and internal cutouts
- One-piece and repeat-quantity inquiries
See the Cut Take Shape

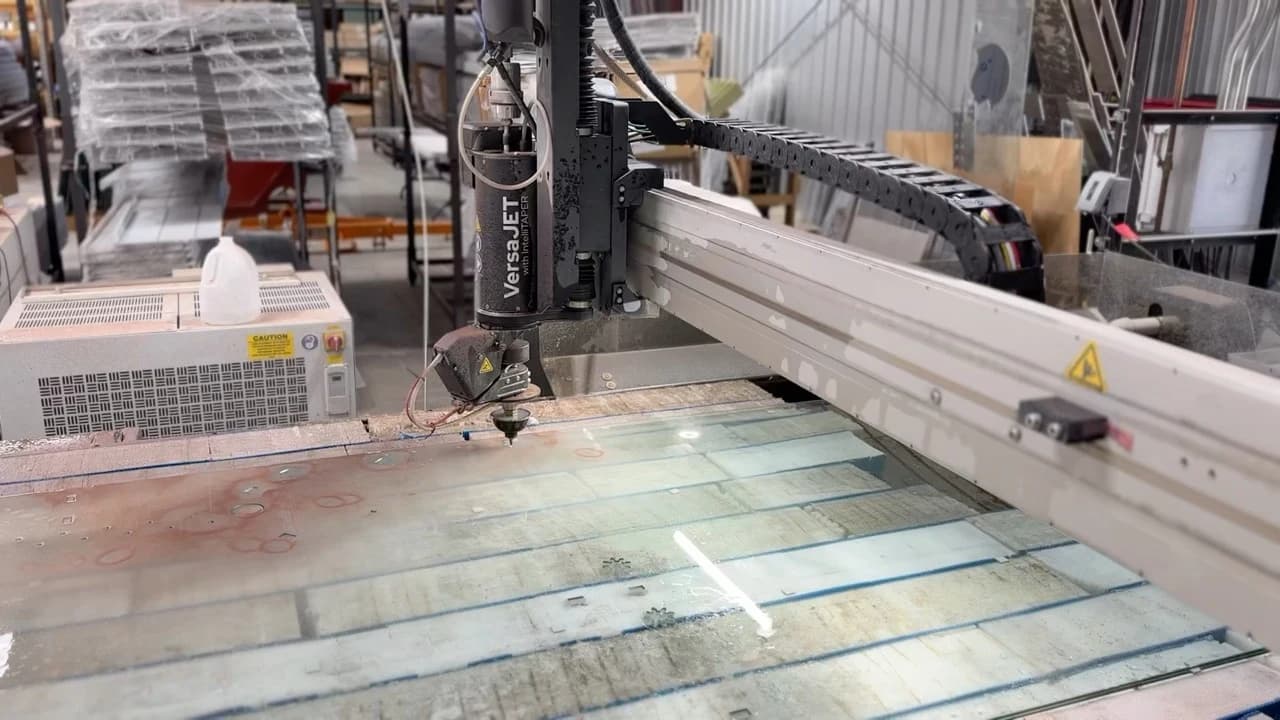

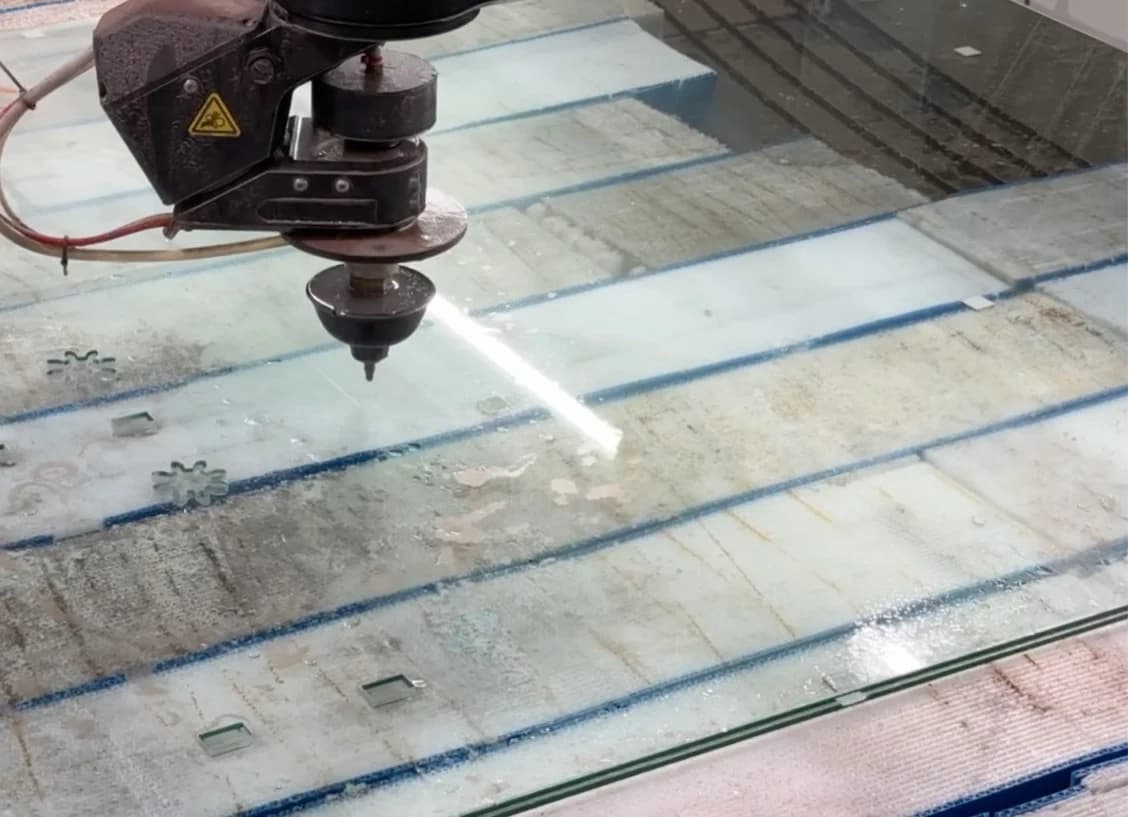

This is our waterjet working through a glass sheet. Watch the cutting head follow the profile while the surrounding material stays supported on the table.
Our machine is equipped with an OMAX VersaJET cutting head. Its ability to tilt gives us more to discuss when a project calls for an angled edge or a demanding profile. We review those details against your material and drawing.
Start with the Material. Build Around the Use.
Glass is part of our everyday fabrication work, and abrasive waterjet technology has applications well beyond glass. These are material and project examples to discuss with TVS. We confirm suitability, dimensions, and finishing for each job before quoting the work.
Glass
Shaped panels, internal openings, holes, and decorative cutouts in suitable glass. Our shop footage shows this work in progress. Any required tempering comes after cutting and fabrication.
Metal
Abrasive waterjet can profile steel, stainless steel, aluminum, brass, and copper. Ask about plates, brackets, sign shapes, or decorative components; include the alloy and thickness for review.
Stone & Tile
The process can create shaped pieces, inlays, and cutouts in suitable stone and tile. Material condition, support, and fragile details affect the cutting plan. Share the exact product before committing to a design.
Other Specialty Materials
Some plastics and composites are also candidates. Send the material name or data sheet and intended use so TVS can assess compatibility, edge requirements, and whether a sample cut is needed.
Planning a safety-glass piece? Already-tempered glass cannot be recut. Holes, cutouts, and edge fabrication must be resolved before tempering. Our tempered glass service explains that sequence.
From Your Drawing to a Clear Cutting Plan
Bring us the idea and the details you already know. We will work through feasibility, dimensions, finishing, and timing before you commit to production.
- 01 — Share the Project
Start with the material, thickness, overall size, quantity, and intended use. Add a sketch or describe the drawing you have, along with your target date.
- 02 — Review the Details
We review the geometry, critical dimensions, material suitability, and finish expectations. Glass for an installed opening may require a TVS field measurement.
- 03 — Confirm the Scope
The cutting plan, material supply, price, and timing are agreed before production. Any polishing, safety-glass processing, or other finishing is identified here.
- 04 — Cut & Coordinate
The approved design guides the cut. Pickup, additional fabrication, or installation arrangements are confirmed according to the project scope.
Tell Us What You Need the Piece to Do
We serve North Georgia, Southeast Tennessee, and Western North Carolina from Copperhill. Start with a call or the contact form. If you have CAD files or supplied material, tell us so we can coordinate the next step.
Call 423-548-8874Material & thickness
Name the glass type, metal alloy, stone product, or other material, and say whether you already have it.
Drawing & dimensions
Include overall size, units, holes, cutouts, and any dimensions that need a particular tolerance.
Quantity & finished use
Tell us how many pieces you need, how they will fit, and which edges will be exposed or handled.
Finish & timing
Note any polishing, safety-glass requirements, pickup or installation needs, and your target date.
Frequently Asked Questions
What is waterjet cutting?
Waterjet cutting uses a focused, high-pressure stream of water to follow a programmed shape. For hard materials such as glass, metal, and stone, an abrasive is added to the stream to remove material. It is a cold cutting process, so it does not create the heat-affected zone associated with thermal cutting.Can a waterjet cut tempered glass?
No. Already-tempered glass can shatter when cutting or piercing releases its internal stress. If your finished piece needs tempering, its shape, holes, and cutouts must be planned and fabricated before that heat treatment. Tell TVS how and where the glass will be used so we can review the right fabrication sequence.What thickness, part size, or tolerance can TVS handle?
Send the material, thickness, overall dimensions, and any critical tolerances for review. Feasibility depends on the material, geometry, holding method, cutting setup, and finish requirements. TVS will confirm the scope for your particular part before work is scheduled.Do I need a finished CAD drawing?
A dimensioned drawing is a useful starting point. If you have a DXF or DWG file, mention it in your inquiry so we can coordinate file delivery and review. A sketch or photo can start the conversation, but production still requires verified dimensions and a suitable cutting file. Confirm the units, material, thickness, quantity, and finished use.Will a waterjet-cut edge be ready to install?
That depends on the application. A cut edge may still need polishing, deburring, or another finishing step. Glass may also need tempering or a different safety-glass specification. Tell us which edges will be visible or handled, and how the piece will fit, so those requirements are included in the scope.Can I request one custom piece or bring my own material?
Tell us whether you need one piece or a repeat quantity and whether you already have the material. We will review suitability, setup, and handling before confirming the job. Please contact the shop before bringing in material; its grade, condition, and dimensions all matter.How much does waterjet cutting cost, and how long does it take?
Pricing depends on the material and thickness, cutting length, number of pierces, detail, quantity, file preparation, and finishing. Timing also depends on material availability and the shop schedule. Share your target date with the project details so TVS can provide a quote and realistic timing.
Cutting Is One Part of the Finished Work
Explore the TVS service that fits the rest of your project.
- Related service
Custom Glass Cutting
Custom glass cutting north georgia for shelves, door lites, and repair pieces—plus clear paths to cut glass to size, tempered g…
Learn more - Related service
Custom Railings
Custom railings for North Georgia homes—glass railings, wrought iron railings, stairs, decks, and balconies. Design, fabricatio…
Learn more - Related service
Commercial Glazing
Commercial glazing and storefront glass across North Georgia, Southeast Tennessee, and the tri-state region: field verification…
Learn more
Have a Shape in Mind? Let’s Talk Through It.
Tell us the material, dimensions, quantity, and intended use. TVS will help you work out whether waterjet cutting is the right fit and what is needed for a quote.
